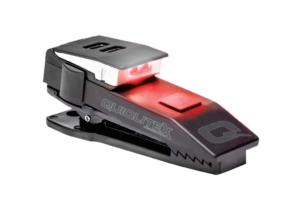

QuiqLiteX Red/White LED (plastic nylon housing)

Name: QuiqLiteX Red/White LED (plastic nylon housing)
SKU: Q-XRW
Price: 41.95 USD
Availability: InStock

$41.95

4 Modes: Red LED: 20 Lumens, White LED: 20/75 Lumens, Safety Strobe: 75 Lumens

QuiqLiteX High Power Red/White LED is USB rechargeable and provides from 20 up to 75 Lumens of light on demand. The first push of the On/Off button will activate the Red LED at 20 Lumens. The 2nd push of the button will activate the White LED at 20 Lumens, designed for normal reading, writing and maneuvering in the dark without having to hold a flashlight in your hands. If more light is required, simply push the X-BOOST button to increase up to 75 Lumens. The QuiqLiteX is equipped with a 10 minute auto-off battery saving timer and continuous Safety Strobe mode, plus QuiqFlare which provides visibility from over 1 mile away. Now includes a new Pupil Gauge located on the back of the QuiqLiteX.

QuiqLiteX Red/White LED

PRODUCT FEATURES

USB Rechargeable
4 Modes: Red LED: 20 Lumens, White LED: 20/75 Lumens, Safety Strobe: 75 Lumens
Super-Bright Dual LEDs
Power X-BOOST Button
Multi-Function On/Off Button
Independent LED Activation
Anti-Glare Visor
10 Minute Auto-Off Timer
180 Degree Adjustable Light Arm
360 Degree Rotating Removable Magnetic Clip
Weather Resistant Nylon Housing

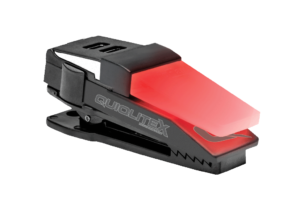

QuiqFlare Light Diffuser Attachment
New Pupil Gauge
CE Certified

INCLUDED IN BOX

QuiqLiteX
Removable Magnetic QuiqClip
QuiqFlare Attachment
USB Charging Cord
User Manual

Weight	9 oz
Dimensions	9 × 6 × 2 in

MODES

Red/White LED Mode

1st push: activates Red LED at 20 Lumens (10 minute auto-off timer)
2nd push: activates White LED at 20 Lumens (10 minute auto-off timer)
3rd push: turns all LEDs off

Tactical Mode

If 2nd push is delayed past 2 seconds of 1st push, QuiqLiteX will auto shift into
Tactical Mode turning off the Red LED without activating the White LED

X-BOOST LED Mode

1st push of X-BOOST button located on the top of the product will increase White LED brightness from 20 up to 75 Lumens
2nd push will dim light back down to 20 Lumens

Safety Strobe

Press & hold main power button down for 2 seconds to activate strobe
(no auto-off timer)
Press button again to turn off strobe

How To Wear

SHIRT WEARING INSTRUCTIONS

REMOVE QuiqClip. Slide the clip off product in a downward motion.
Clip QuiqLiteX into the shirt pocket fabric between the main body and shirt pocket clamping slot.
Cover top of QuiqLiteX with pocket lapel.

MOLLE WEARING INSTRUCTIONS

REMOVE QuiqClip. Slide the clip off product in a downward motion.
Activate On/Off button between MOLLE webbing loops.

The QuiqClip can be re-attached for thicker mounting applications up to 1" thick including gun belts, cite books, sun visors, jacket, hat, etc. The QuiqClip is magnetic and will hold to most metallic objects.

QuiqLite in Shirt Pocket

REMOVE CLIP FIRST
* QuiqLite shown for illustration. Actual product may vary.

QuiqLite in Molle

REMOVE CLIP FIRST
* QuiqLite shown for illustration. Actual product may vary.

Charging

QuiqLiteX uses a micro USB charging port located on the side of the product. Insert the supplied micro USB charging cord into the side of the QuiqLiteX and plug directly into a computer USB port, or other micro USB port with a minimum output of 5 volts.

CHARGING - Red LED is steady
CHARGED - Red LED is flashing

Charge time is approximately 2 hours

SPECIFICATIONS

RED LED: 20 Lumens (5 hours)
LOW POWER WHITE LED: 20 Lumens (15 hours)
X-BOOST WHITE LED: 75 Lumens (5 hours)
STROBE: 75 Lumens (5 hours)
HOUSING: Nylon/Aluminum
BATTERY: 1 QuiqLiteX Lithium (included) Part# 052042
CHARGE TIME: 2.5 hours or less
LENGTH: 3″
WIDTH: 0.90″
WEIGHT: 1.4 oz. (w/ battery & clip)

Product Manual

QuiqLiteX is USB rechargeable delivering from 20 up to 75 lumens of light on demand. Manufactured from high strength nylon plastic and aluminum QuiqLiteX will take an assortment of punishment and will provide years of dependable service.

Please read this manual before using your QuiqLiteX. It includes important safety and operating instructions and should be saved. QuiqLiteX must be fully charged before first use. If you have any questions regarding our products, please contact us.

WEARING INSTRUCTIONS:

Slide clip off product in a downward motion (#1)
Clip QuiqLiteX into the shirt pocket fabric between the main body and shirt pocket clamping slot (#2)
QuiqLiteX is also designed to securely fit into MOLLE webbing loops on all Law Enforcement and Military tactical vests (clip removed.)
Cover top of X with pocket lapel.
Activate On/Off button through fabric of shirt pocket or between MOLLE webbing loops.
Activate turbo/dimmer button located on the top of the product
Re-attach clip for thicker mounting applications up to 1” thick i.e. Gun Belt, Cite book, sun visor, jacket, etc.

BATTERY RUN TIME:

Low Power: 40 Lumens (10 hours)
X-BOOST Medium Power: 75 Lumens (4 hours)
X-BOOST High Power: 150 Lumens (2 hours)
Safety Strobe: 75 Lumens (4 hours)

CHARGING INSTRUCTIONS:

CHARGING – Red LED is steady
CHARGED – Red LED is flashing

Charge time is approximately 2 hours

FUNCTIONS:

Red/White LED Mode

1st push: activates Red LED at 20 Lumens (10 minute auto-off timer)
2nd push: activates White LED at 20 Lumens (10 minute auto-off timer)
3rd push: turns all LEDs off

Tactical Mode

If 2nd push is delayed past 2 seconds of 1st push, QuiqLiteX will auto shift into
Tactical Mode turning off the Red LED without activating the White LED

X-BOOST LED Mode

1st push of X-BOOST button located on the top of the product will increase White LED brightness from 20 up to 75 Lumens
2nd push will dim light back down to 20 Lumens
