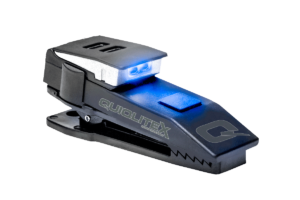

QuiqLiteX Blue/White LED (plastic nylon housing)

Name: QuiqLiteX Blue/White LED (plastic nylon housing)
SKU: Q-XBW
Price: 39.48 USD
Availability: InStock

$39.48

6 Modes: Blue LED: 20 Lumens, White LED: 5/20/50/100 Lumens, Safety Strobe: 100 Lumens

QuiqLiteX High Power Blue/White LED is USB rechargeable and provides from 5 up to 100 Lumens of light on demand. The first push of the On/Off button will activate the Blue LED at 20 Lumens, which can be used by emergency medical providers for easy detection of body fluids. The 2nd push of the button will activate the White LED at 20 Lumens, designed for normal reading, writing and maneuvering in the dark without having to hold a flashlight in your hands. If more light is required, simply push the X-BOOST button to increase up to 100 Lumens. The QuiqLiteX is equipped with a 10 minute auto-off battery saving timer and continuous Safety Strobe mode, plus QuiqFlare which provides visibility from over 1 mile away. Now includes a new Pupil Gauge located on the back of the QuiqLiteX.

QuiqLiteX Blue/White LED

PRODUCT FEATURES

USB Type-C Rechargeable Lithium battery
6 modes
Moonlight mode
Lumen Boost w/ memory
5 up to 100 lumens of light output
10-minute auto-off battery saving timer
Nylon housing with aluminum heat-sink
Dual independent programmable LEDs
Magnetic rotating removeable QuiqClip
Adjustable LED light arm
Safety Strobe

INCLUDED IN BOX

QuiqLiteX
Removable Magnetic QuiqClip
QuiqFlare Attachment
Type-C USB Charging Cord
User Manual

Weight	9 oz
Dimensions	9 × 6 × 2 in

MODES

FUNCTIONS / 6 MODES

1st push: Activates blue LED (10 auto-off timer)
2nd push: Within 1 second of 1st push turns off the blue LED and turns on the White LED (10 minute auto-off timer)
3rd push: Turns all LEDs off

Tactical Mode:

If 2nd push is delayed 2 seconds past 1st push, QuiqLiteX will auto shift into Tactical Mode allowing the blue LED to turn on without having to toggle past the white LED.

* Push the power button again to turn the blue LED off

Boost Mode

With Blue or White LED on, quickly double press the On/Off to increase LED brightness from 5 (moonlight mode) up to 100 lumens (full power)

(10 minute auto-off battery saving timer)

Brightness / Lumen Memory:

*QX will activate at the last lumen setting*

Safety Strobe Feature:

QuiqLiteX is equipped with a continuous strobe

Press and hold On button down for 3 seconds to active strobe function (strobe will not auto shut off)
Press On / Off button again to turn off strobe

Low Battery Warning:

QX is equipped with a low battery voltage warning.
When 10% battery life is remaining (approximately 10 minutes of battery life) QX will flash the blue LED quickly 2 times every two minutes, letting you know the battery is low and needs to charged.

How To Wear

SHIRT WEARING INSTRUCTIONS

REMOVE QuiqClip. Slide the clip off product in a downward motion.
Clip QuiqLiteX into the shirt pocket fabric between the main body and shirt pocket clamping slot.
Cover top of QuiqLiteX with pocket lapel.

MOLLE WEARING INSTRUCTIONS

REMOVE QuiqClip. Slide the clip off product in a downward motion.
Activate On/Off button between MOLLE webbing loops.

The QuiqClip can be re-attached for thicker mounting applications up to 1" thick including gun belts, cite books, sun visors, jacket, hat, etc. The QuiqClip is magnetic and will hold to most metallic objects.

QuiqLite in Shirt Pocket

REMOVE CLIP FIRST
* QuiqLite shown for illustration. Actual product may vary.

QuiqLite in Molle

REMOVE CLIP FIRST
* QuiqLite shown for illustration. Actual product may vary.

Charging

QuiqLiteX uses a Type-C USB charging port located on the side of the product. Insert the supplied Type-C USB charging cord into the side of QuiqLiteX and plug directly into computer USB port or other Type-C USB port with a minimum output of 5 volts.

CHARGING - Red LED is steady
CHARGED - Red LED is flashing

Charge time is approximately 2 hours

SPECIFICATIONS

MOONLIGHT MODE: 5 Lumens (40 hours)
BLUE LED: 20 Lumens (5 hours)
LOW POWER WHITE LED: 20 Lumens (12 hours)
HIGH POWER WHITE LED: 100 Lumens (1.5 hours)
SAFETY STROBE: 100 Lumens (6+ hours)
HOUSING: Nylon/Aluminum
BATTERY: 1 QuiqLiteX Lithium (included) Part# 052042
CHARGE TIME: 2.5 hours or less
LENGTH: 3″
WIDTH: 0.90″
WEIGHT: 1.4 oz. (w/ battery & clip)

Product Manual

QuiqLiteX is USB rechargeable delivering from 5 up to 100 lumens of light on demand. Manufactured from high strength nylon plastic and aluminum QuiqLiteX will take an assortment of punishment and will provide years of dependable service.

Please read this manual before using your QuiqLiteX. It includes important safety and operating instructions and should be saved. QuiqLiteX must be fully charged before first use. If you have any questions regarding our products, please contact us.

WEARING INSTRUCTIONS:

Slide clip off product in a downward motion (#1)
Clip QuiqLiteX into the shirt pocket fabric between the main body and shirt pocket clamping slot (#2)
QuiqLiteX is also designed to securely fit into MOLLE webbing loops on all Law Enforcement and Military tactical vests (clip removed.)
Cover top of X with pocket lapel.
Activate On/Off button through fabric of shirt pocket or between MOLLE webbing loops.
Activate turbo/dimmer button located on the top of the product
Re-attach clip for thicker mounting applications up to 1” thick i.e. Gun Belt, Cite book, sun visor, jacket, etc.

BATTERY RUN TIME:

MOONLIGHT MODE: 5 Lumens (40 hours)
LOW POWER LED: 20 Lumens (12 hours)
HIGH POWER LED: 100 Lumens (1.5 hours)
SAFETY STROBE: 100 Lumens (6+ hours)

CHARGING INSTRUCTIONS:

CHARGING – Red LED is steady
CHARGED – Red LED is flashing

Charge time is approximately 2 hours

FUNCTIONS:

6 MODES
