QuiqLiteX1 Red/White LED

Name: QuiqLiteX1 Red/White LED
SKU: QX1RW3
Availability: InStock

$41.95

6 Modes: White LED: 5/75/150 Lumens, Red LED: Low/High, Safety Strobe: 150 Lumens

Introducing the New QuiqLiteX1. Crafted from high strength German nylon plastic. This new iteration boasts unparalleled durability and lightweight construction, ensuring reliability in any situation. The QuiqLiteX1 features a new state-of-the-art Stainless Steel adjustable arm heat sink, designed for increased strength and efficiently to dissipate heat and extend LED lifespan, thereby enhancing performance and reliability.

Equipped with Smart Switch technology, QuiqLiteX1 is now controlled through a single On/Off button. This intuitive interface simplifies operation, allowing users to effortlessly cycle through modes and adjust brightness levels from a versatile range of 5, 75, and 150 lumens on demand, complete with lumen memory function for added convenience.

Now equipped with a Type-C charging port, QuiqLiteX1 ensures quick and efficient recharging, eliminating the hassle of outdated charging methods.

A standout addition to its capabilities is the new 5 lumen moonlight mode, perfect for tasks requiring minimal light output without compromising battery life or your night vision. Whether for tactical operations, reading, or everyday tasks, the QuiqLiteX1 offers unmatched versatility and adaptability.

QuiqLiteX1 sets a new standard in portable lighting solutions, blending cutting-edge technology with robust design to meet the diverse needs of first responder professionals.

PRODUCT FEATURES

Low Profile Design
Conceal In Pocket
5-150 Lumens
Programmable LED’s With Lumen Memory
Tactical Red LED With Low/High Setting
Moonlight Mode (5 Lumens)
Molle Compatible
LED Power Boost
Anti-Glare Visor
10 Minute Auto-Off Timer
180° Adjustable Light Arm
360° Rotating Removable Magnetic Clip
Multi-Function On/Off Button
Pupil Gauge
Safety Strobe
Weather Resistant
USB Type-C Charging Cord

INCLUDED IN BOX

QuiqLiteX1
Removable Magnetic QuiqClip
QuiqFlare Attachment
USB Type-C Charging Cord

QuiqLiteX1 Red/White LED Product Manual

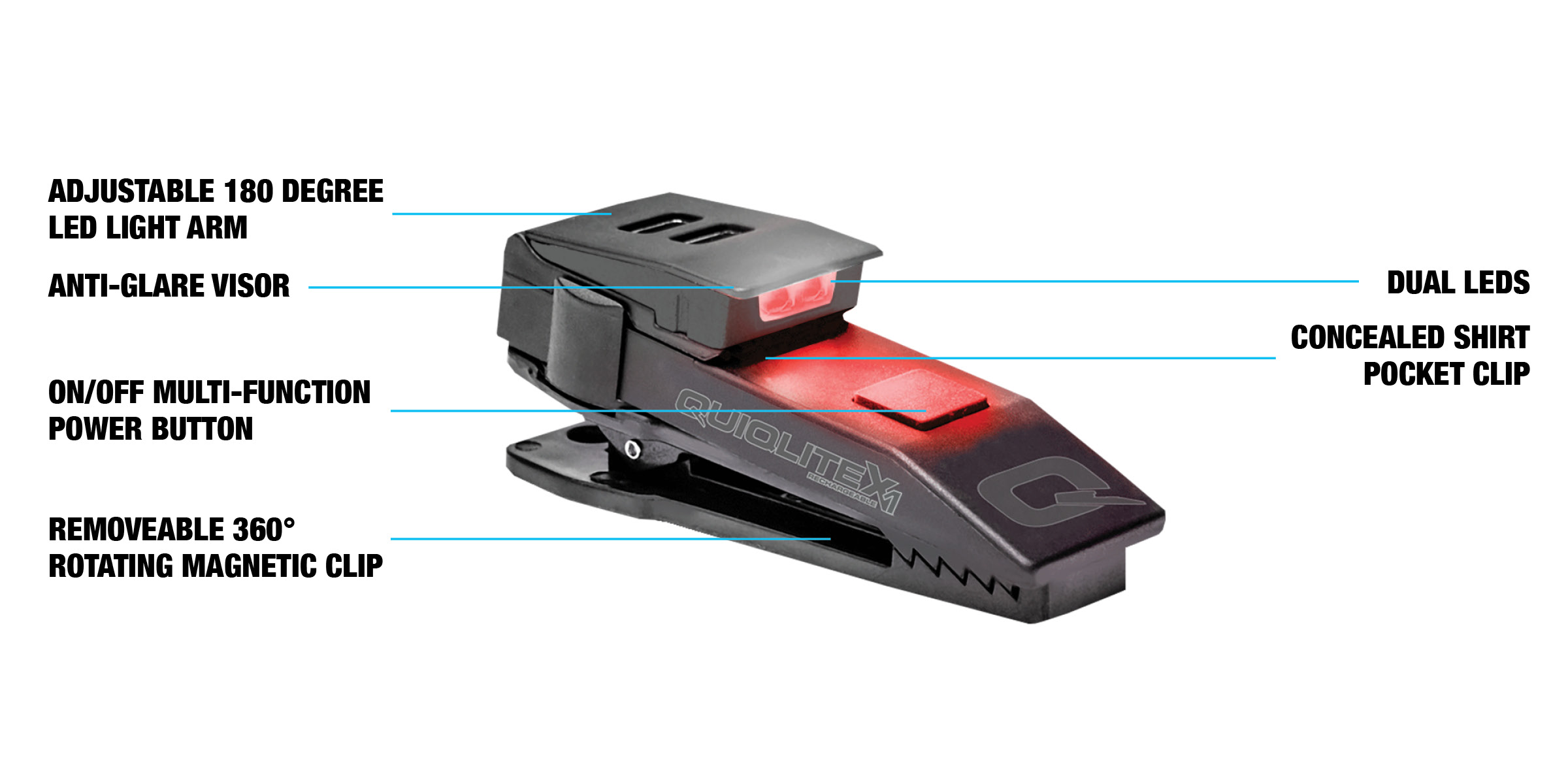

QuiqLite X1 Red LED Light Features

Weight	9 oz
Dimensions	9 × 6 × 2 in

MODES

Tactical Mode:

If 2nd push is delayed <2 seconds past 1st push QX1 will shift into tactical mode allowing the red LED to turn off without having to toggle past the white LED.

Boost Mode:

LEDs On, quickly double push On/Off button to increase Lumens from 5, 75 up to 150 lumens on demand
Double push again and QX1 will reduce lumens.
QX1 has lumen memory and will return to the last lumen output.
(10-minute auto off timer)

Brightness / Lumen Memory:

*QX1 will activate at the last lumen setting*

Safety Strobe Feature:

QuiqLiteX1 is equipped with a continuous safety strobe

Press and hold On button down for 3 seconds to activate strobe function (strobe will not auto shut off).
Press On / Off button again to turn off strobe.

Low Battery Warning:

QX1 is equipped with a low battery voltage warning. When 10% battery life is remaining (approximately 10 minutes of battery life) QX1 will flash LEDs quickly 2 times every two minutes, letting you know the battery is low and needs to charged.

How To Wear

SHIRT WEARING INSTRUCTIONS

REMOVE QuiqClip. Slide the clip off product in a downward motion.
Clip QuiqLiteX1 into the shirt pocket fabric between the main body and shirt pocket clamping slot.
Cover top of QuiqLiteX1 with pocket lapel.

MOLLE WEARING INSTRUCTIONS

REMOVE QuiqClip. Slide the clip off product in a downward motion.
Activate On/Off button between MOLLE webbing loops.

The QuiqClip can be re-attached for thicker mounting applications up to 1" thick including gun belts, cite books, sun visors, jacket, hat, etc. The QuiqClip is magnetic and will hold to most metallic objects.

QuiqLite in Shirt Pocket

REMOVE CLIP FIRST * QuiqLite shown for illustration. Actual product may vary.

QuiqLite in Molle

REMOVE CLIP FIRST * QuiqLite shown for illustration. Actual product may vary.

Charging

QuiqLiteX1 uses a Type-C USB charging port located on the side of the product. Insert the supplied Type-C USB charging cord into the side of QuiqLiteX1 and plug directly into computer USB port or other Type-C USB port with a minimum output of 5 volts.

CHARGING - Red LED is steady
CHARGED - Red LED is flashing

Charge time is approximately 2 hours

SPECIFICATIONS

MOONLIGHT MODE: 5 Lumens (40 hours)
MEDIUM POWER LED: 75 Lumens (4 hours)
HIGH POWER LED: 150 Lumens (2 hours)
SAFETY STROBE: 150 Lumens
HOUSING: Nylon/Stainless Steel
BATTERY: 1 QuiqLiteX Lithium (included) Part# 052042
CHARGE TIME: 2.5 hours or less
LENGTH: 3″
WIDTH: 0.90″
WEIGHT: 1.4 oz. (w/ battery & clip)
