Thank you for selecting QuiqLiteX1 (QX1) concealed hands-free LED light source for your uniform shirt pocket!

QX1 DUAL WHITE LED is USB rechargeable delivering from 20 up to150 lumens of light on demand.  Manufactured from high strength nylon plastic and Stainless steel, QX1 will take an assortment of punishments and will provide years of dependable service.

Please read this manual before using your QX1. It includes important safety and operating instructions and should be saved.  QuiqLiteX1 must be fully charged before first use. If you have any questions regarding our products, please contact us.


SAFETY

A. While eye damage from QuiqLiteX1 is unlikely, it is a Class 2 L.E.D. product and YOU SHOULD NOT STARE INTO THE BEAM.

CAUTION: LED RADIATION
AVOID DIRECT EYE EXPOSURE
CLASS 2 L.E.D. PRODUCTS


PRODUCT FEATURES:

  • HANDS-FREE LED LIGHT SOURCE
  • USB TYPE-C RECHARGEABLE
  • CLIPS IN UNIFORM SHIRT POCKET
  • MOLLE COMPATABLE
  • 4 MODES OF OPERATION
  • CONCEALED IN POCKET
  • 5, 75 AND 150 LUMENS WITH MEMORY
  • LED POWER BOOST
  • ANTI-GLARE VISOR
  • 10 MINUTE AUTO-OFF TIMER
  • 180 DEGREE ADJUSTABLE LIGHT ARM
  • 360 DEGREE ROTATING REMOVEABLE MAGNETIC CLIP
  • PUBLE GUAGE
  • SAFETY STROBE

WEARING INSTRUCTIONS:

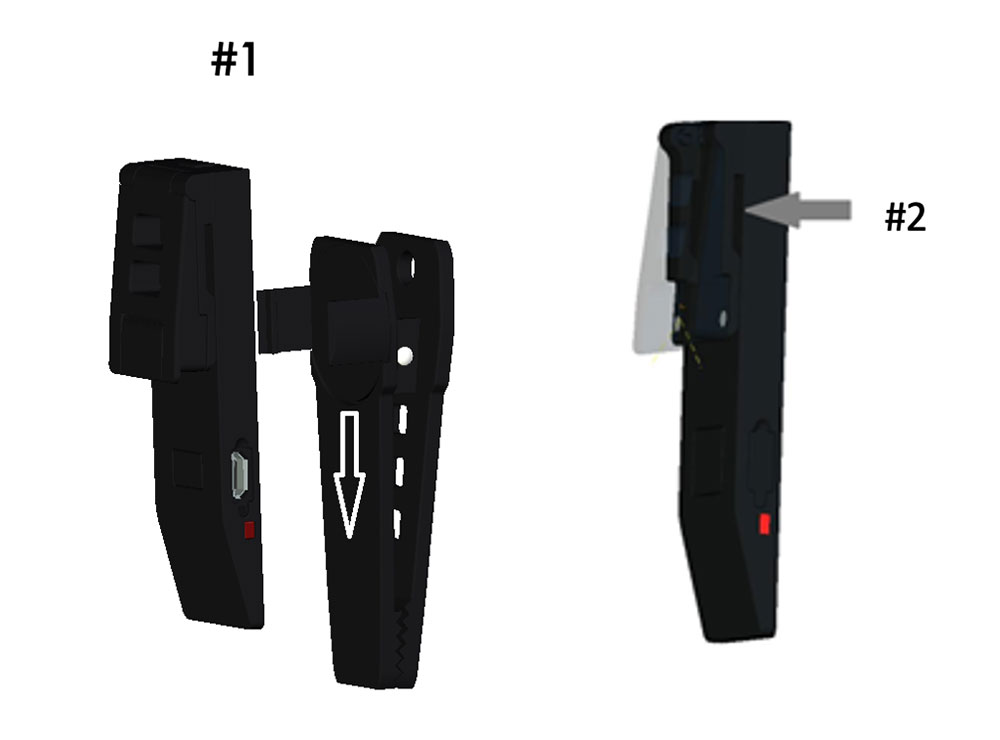

  1. Slide clip off product in a downward motion (#1)
  2. Clip QX1 into the shirt pocket fabric between the main body and shirt pocket clamping slot (#2)
  3. QX1 is also designed to securely fit into MOLLE webbing loops on all Law Enforcement and Military tactical vests (clip removed.)
  4. Cover top of QX1 with pocket lapel/flap.
  5. Activate On/Off button through fabric of shirt pocket or between MOLLE webbing loops
  6. Re-attach clip for thicker mounting applications up to 1” thick i.e. Gun Belt, Cite book, sun visor, jacket, etc.

BATTERY RUN TIME:

Low Power 5 lumens:
  • Dual LED: 40 hours
Med Power 75 lumens:
  • Dual LED: 4 hours
High Power 150 lumens:
  • 2 hours

CHARGING INSTRUCTIONS:

QX1 uses a Type-C charging port located on the left side of the product. Insert the supplied Type-C charging cord into the side of QX1 and plug charger directly into wall. It may take a few seconds for the charging (red) L.E.D. to light when the cord is first inserted.

QX1 can also be charged in your vehicle power outlet with a USB adaptor, or USB computer port via USB to Type-C charging cable (provided).

  • Charging…. L.E.D. is solid
  • Charged…L.E.D. flashing
  • Charge time is approximately 2 hours

CAUTION: To reduce the risk of fire, electrical shock or personal injury, do not attempt to use the supplied charger to recharge any other product. Do not abuse the charging cord.
  • Plug AC charger directly into an electrical outlet. Do not use an extension cord.
  • Do not try to repair the unit yourself. Send it to a qualified service facility or return it to the factory.
  • Use of this product for other than a lighting device is not recommended QuiqLite disclaims liability for other than recommended use.

OPERATION:

  • 1st push activates dual white LEDs
  • 2nd push turns off LEDs
  • (15-minute auto off timer)

BOOST MODE:

  • LEDs On, quickly double push On/Off button to increase Lumens from 5, 75 up to 150 lumens on demand
  • Double push again and QX1 will reduce lumens.
  • QX1 has lumen memory and will return to the last lumen output.
    (10-minute auto off timer)

STROBE MODE:

  • LEDs on. Press & hold button down for 2 sec. to activate Safety Strobe (no auto-off timer).
  • Press button again to turn off strobe.
